Chrome/Neo-Chome Decorate Film Vacuum Coating Machine/ Colorful Coating Film Plating Machine For Plastic Metal PYVAC

FOB Reference Price:Get Latest Price
$30,000.00 - $200,000.00 / Sets | 1 Set/Sets vacuum coating machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
PYVAC
Model Number:
CJ Series
Voltage:
220V/380V
Power(W):
380v 220v
Dimension(L*W*H):
1600*1800MM
Weight:
3-4 Tons
Certification:
CE SGS ISO9001
Equipment:
Magnetron Sputtering Vacuum Coating Machinery
Model:
CJ-600/CJ-800/CJ-1000/CJ-1200/CJ-1400/CJ-1500/CJ-1600
Application:
Ceramic
Plating Process:
Vacuum Plating
Chamber Size:
1600*1800mm
Pump:
Diffusion Pump
Control System:
Manual/Full-Automatic
Ultimate Vacuum:
5*10-4Pa
Name:
Chrome/Neo-Chome Decorate Film Vacuum Coating Machine
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
20 Set/Sets per Week vacuum coating machine
Packaging & Delivery
Packaging Details
Nude Packing
20"or40" container for vacuum coating machine
Port
Shanghai
Lead Time :
Shipped in 25 days after payment
Product Description

CJ Series Magnetron Sputtering Vacuum Coating Machine

PVD Magnetron Sputtering Vacuum Coating Machine/Chrome Plating Machine for Metal



Operational principle:

The operating principle of magnetron sputtering of series CJ magnetron sputtering vacuum membrane plate machine: the so-called “sputtering” is using the energetic particle (the gas positive ion is used generally) to bombard the object so as to cause the phenomenon of the surface atom of the objective escaping from the parent. As far back as 1842, Grove had found this phenomenon in the laboratory. The magnetron sputtering target adopts the static electromagnetic field, which is curvilinear, while the plane target and cylindrical target adopt the uniform electric field and logarithm electric field respectively. Under effect of the electric field, the electron will collide with the argon atom in the process of accelerating flying to the substrate. When the electron has enough energy (about 30ev), Ar+ will be ionized and the electron will be produced and fly to the substrate; under effect of the electric field, Ar+ will accelerate flying to the cathode (the sputtering target) and bombard the surface of the target with high energy and make the target sputtering.


Applications:
It is widely used in electrical appliances, watch & clock, golf head, arts and crafts, toys, lights reflectors, phone keypad housing and instrumentation, plastics, glass, ceramics, tiles and other surface decorative coating film and functional coating of tool and mould. It has the irreplaceable advantages in areas of coated ultra-black film, gold decoration film and conductive film.

Features:
1) Good film thickness controllability and repeatability. The predetermined thickness of film can be reliably coated, and the sputtering coating film can be obtained with uniform thickness film layer on the large surface;

2) Strong adhesion of the film and the substrate. Some of the high energy of the sputtered atoms generates the different degrees of incidence phenomenon, forming a layer of pseudo-diffusion layer that sputtered atoms fused to the substrate atoms each other;

3) Prepare a film made by special material, different materials may be used to sputter and prepare a mixed film and compound film, and also a Tin imitation gold film can be sputtered;

4) High purity with film layer, the sputtering film layer will not be mixed with components of crucible heater material.

4) It is equipped with a low-temperature auxiliary ion beam source, directly cool coat the film at room temperature without heating, energy saving and productivity improvement.

Product Parameter
Model
CJ-600
CJ-800
CJ-1000
CJ-1200
CJ-1400
CJ-1500
CJ-1600
vacuum chamber dimensions
φ600X800MM
φ800X1000MM
φ1000X1200MM
φ1200X1400MM
φ1400X1600MM
φ1500X1500MM
φ1600X1800MM

vacuum system
KT400 Diffusion pump unit
KT500
Diffusion pump unit
KT800
Diffusion pump unit
KT630
Diffusion pump unit
A pair of
KT630
Diffusion pump unit
A pair of
KT630
Diffusion pump unit
A pair of
KT630
Diffusion pump unit
Coating system
Dc or intermediate frequency power supply, plating auxiliary ion dedicated power supply
Inflation system
Mass flowmeter
Control mode
Manual or automatic
Ultimate vacuum
5X10-4Pa
Remarks
Above equipment parameters for your reference only, specific according to customers' special requirement of practical process design

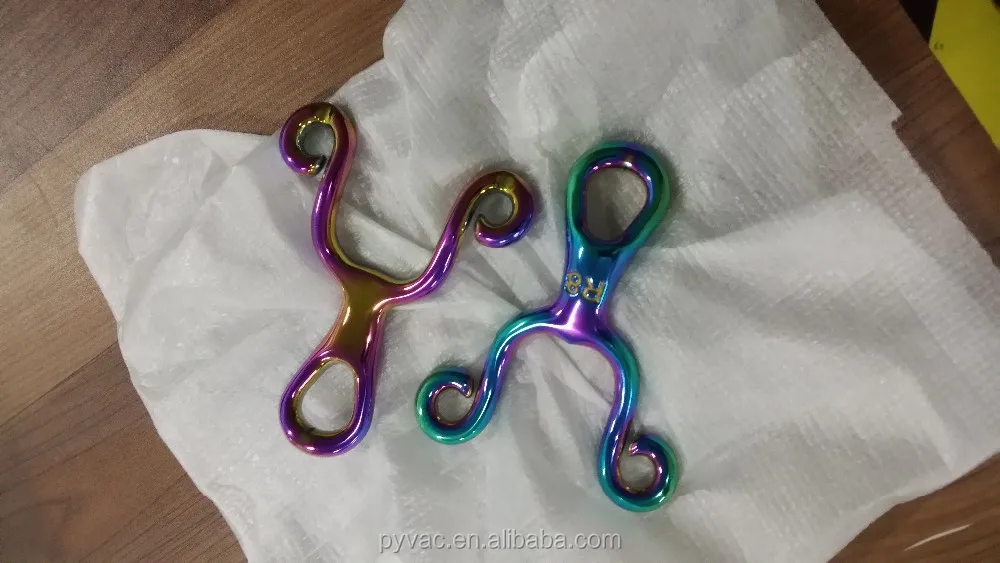

Coating Products
