Glass Lamp Shade Inner Coating Aluminum/Mirror Lamp Coating/Al Plating Equipment

FOB Reference Price:Get Latest Price
$30,000.00 - $200,000.00 / Sets | 1 Set/Sets The price could negotiate (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Coating Production Line
Substrate:
Aluminum
Coating:
Vacuum Coating
Place of Origin:
Jiangsu, China
Brand Name:
PYVAC
Model Number:
ZFG Series
Voltage:
380V
Power(W):
40KW
Dimension(L*W*H):
Customized Size
Weight:
4 TONS
Certification:
ISO9001:2008
Equipment:
Resistant Evaporation Vacuum Coating Machine
Model:
ZFG-1200/ZFG-1400/ZFG-1500/ZFG-1600/ZFG-1800/ZFG-2000/ZFG-2200
Application:
Lamps and Auto Parts
Plating Process:
Vacuum Plating
Chamber Size:
1600*1800mm
Pump:
Diffusion Pump
Control System:
Manual/Automatic
Ultimate Vacuum:
5*10-4Pa
Coating color:
According customers' requirement
Chamber size:
According production quantity
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20 Set/Sets per Week
Packaging & Delivery
Packaging Details
Nude Packing
20"or40" container for vacuum coating machinery
Port
Shanghai
Lead Time :
45 working days after contact signing
Product Description

ZFG Series Silicone Protective Film Resistive Evaporation Vacuum Coating Machine Special for Light



Operational principle:

The metal materials mounted on the resistance wire (aluminum, chromium-nickel and tin) are melted vaporized molecules vaporized metal deposited on the surface of the substrate to form a reflective surface metallization in a vacuum chamber through a resistor resistance heating rods, and then use the leading coated protective film technology, the liquid silicon compound into the filling chamber, the gas from the reaction is deposited on the substrate surface to form a protective film to protect the metal layer is not oxidized in the atmosphere and corrosion, reduces heat, UV and ozone layer effects, thus greatly improving the life of the reflection effect of the metal and acid capacity.

The traditional craft methods is used to complete the metallization material processes in the coating machine, then spray the oil on UV coating line, UV curing oil spray above form a transparent protective effect.




Applications:

It applies to the automotive industry, automotive light reflectors or reflector lighting industry.



Features:

The advantages of evaporation coating machine with a transparent protective film lies in eliminating multi-process yield impact caused turnover and low productivity in the same channel coating process to complete the follow-up process. Also eliminate the need for the user cost of inputs for production without UV coating line. A single vacuum coating machine can be used to complete the work.

Product Parameter
Model
ZFG-1200
ZFG-1400
ZFG-1500
ZFG-1600
ZFG-1800
ZFG-2000
ZFG-2200
vacuum chamber dimensions
φ1200X1400MM
φ1400X1600MM
φ1500X1600MM
φ1600X1800MM
φ1800X2000MM
φ2000X2200MM
φ2200X2400MM

vacuum system
KT630 Diffusion pump unit
A pair of
KT630
Diffusion pump unit
A pair of
KT630
Diffusion pump unit
A pair of
KT630
Diffusion pump unit
A pair of
KT800
Diffusion pump unit
A pair of
KT1000
Diffusion pump unit
A pair of
KT1000
Diffusion pump unit
Coating system
Resistance evaporation source, silicone oil evaporation device
Inflation system
Germany import flow ratio control valve
Control mode
Manual or automatic
Ultimate vacuum
5X10-4Pa
Remarks
Above equipment parameters for your reference only, specific according to customers' special requirement of practical process design
Coating Products

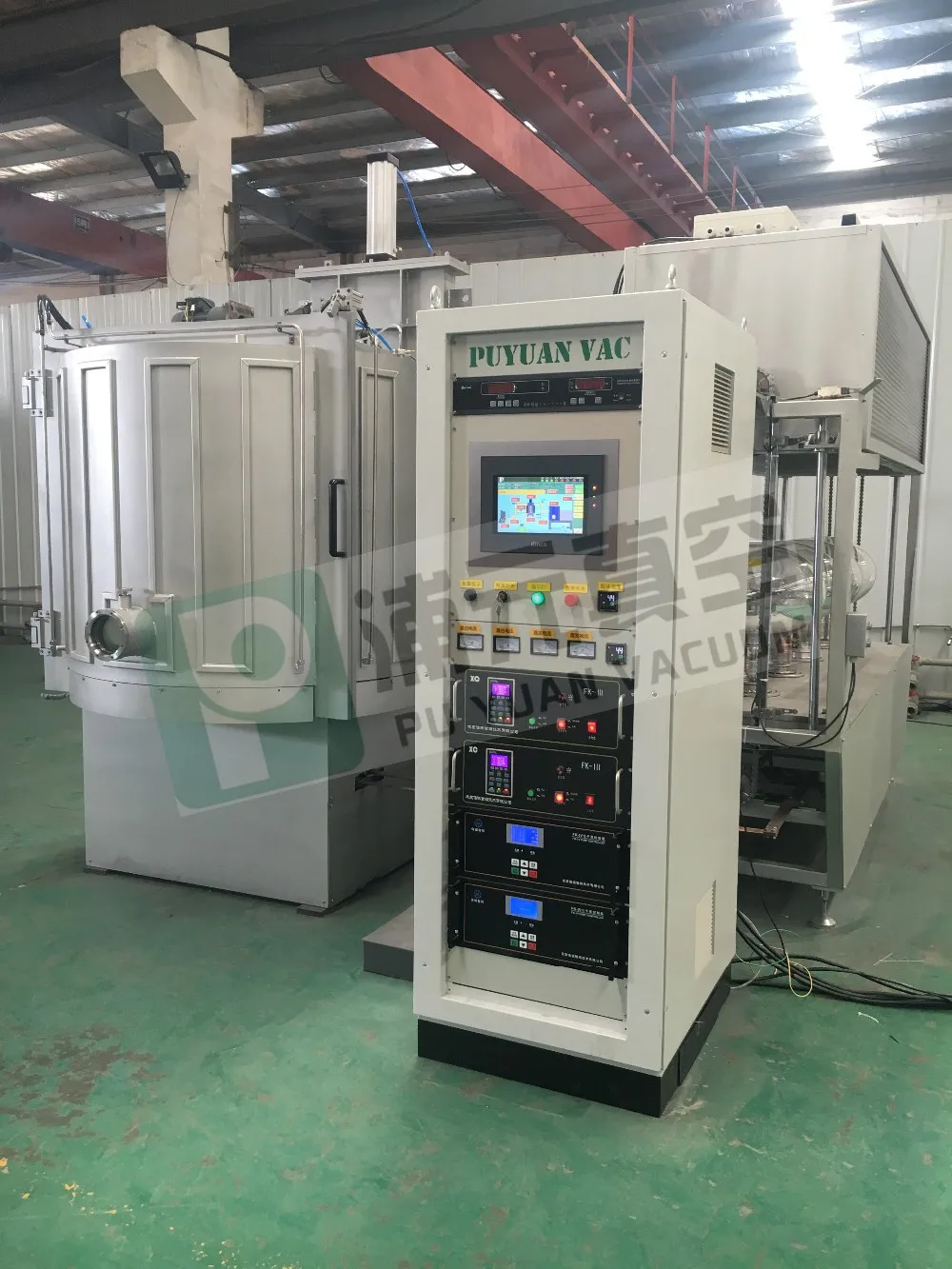

Resistance Evaporation Vacuum Coating machine


It is design for coating the inner suface of glass lamp shade.Achieve the outside have the mirror effect.

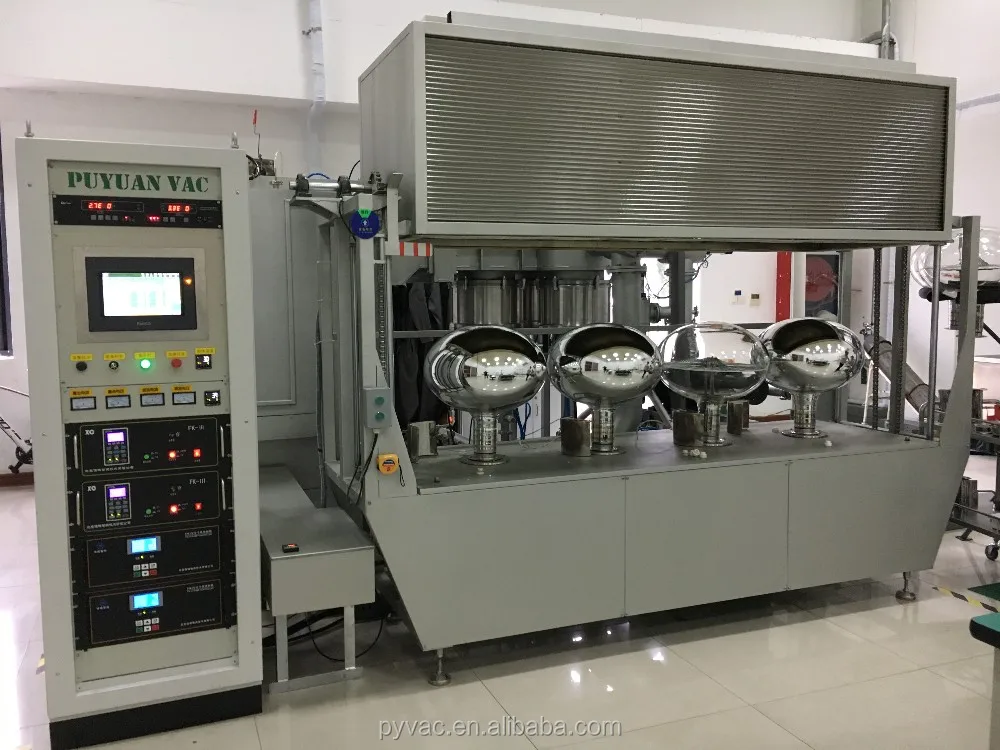

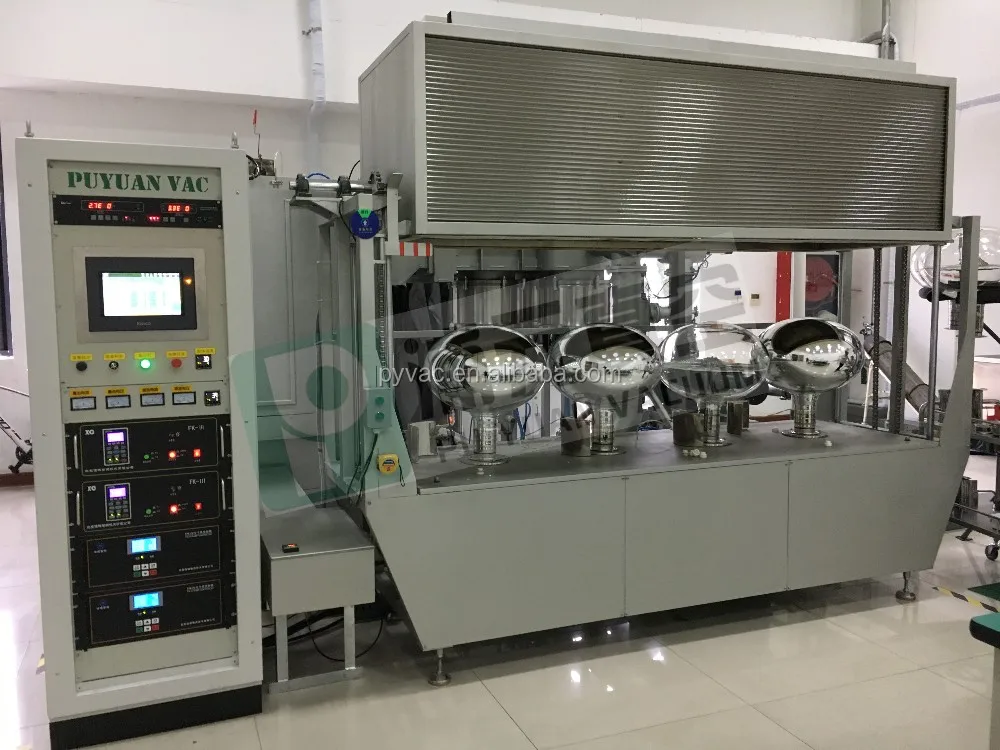

This type machine have two chambers,and can switch used.


It is design for coating the inner suface of glass lamp shade.Achieve the outside have the mirror effect.

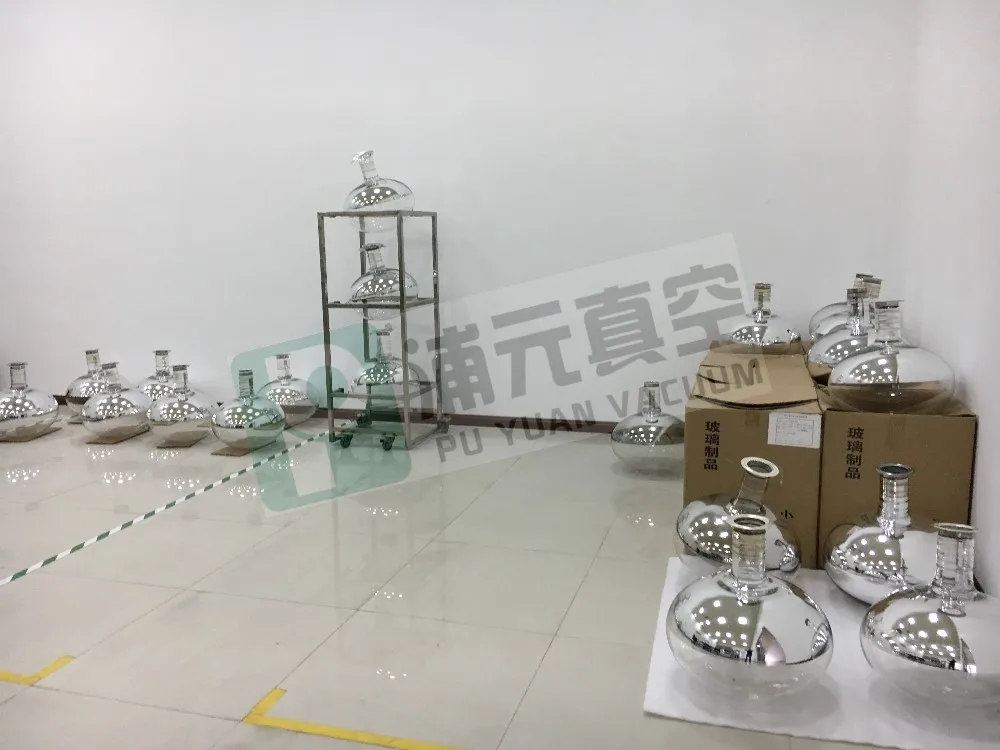

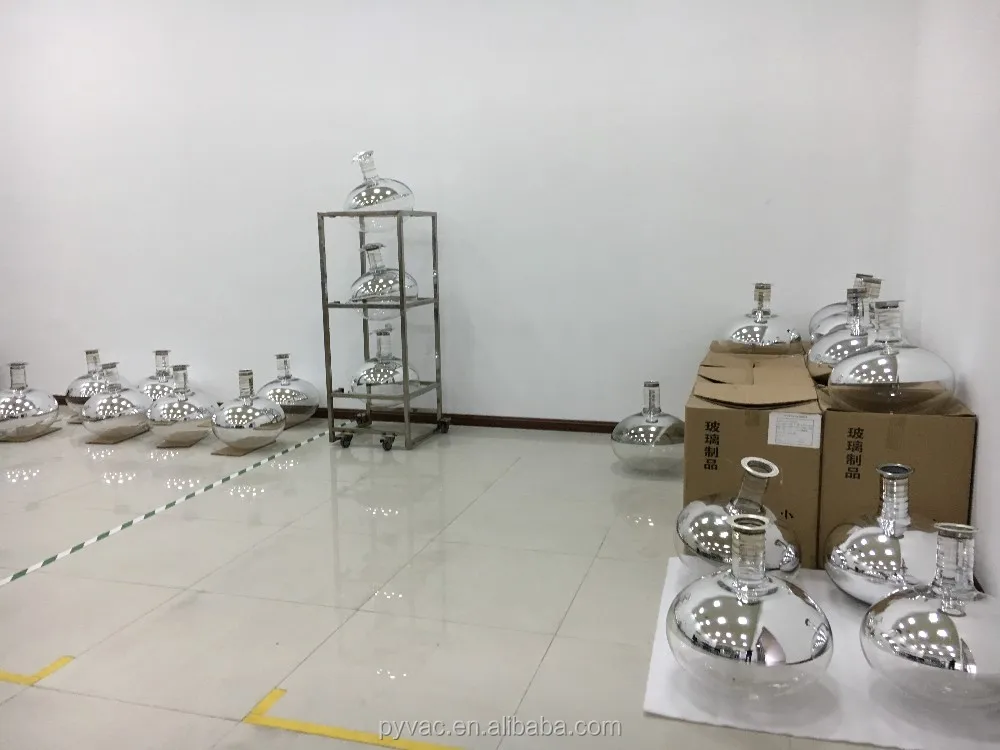

Glass lamp shade sampls

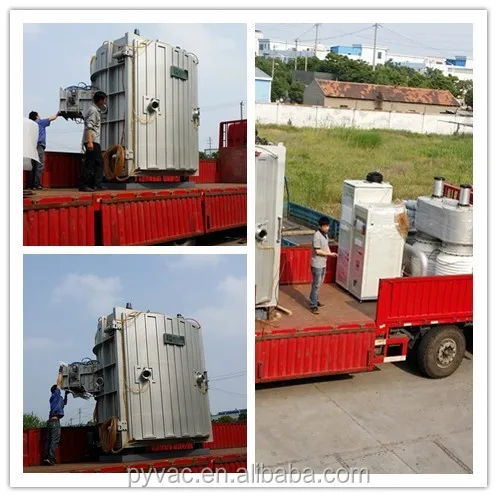

Packing and Delivery
Factory
Certifications
Customer Visit Us
