sputtering machine for glass mirror PVD titanium sputtering coating machine 2017 PYVAC

FOB Reference Price:Get Latest Price
$30,000.00 - $200,000.00 / Sets | 1 Set/Sets The price could negotiate/Mini Magnetron Sputtering Vacuum Coati (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
PYVAC
Model Number:
CJ Series
Voltage:
220V/380V
Power(W):
380v 220v
Dimension(L*W*H):
1600*1800MM
Weight:
3-4 Tons
Certification:
CE SGS ISO9001
Equipment:
Magnetron Sputtering Vacuum Coating Machinery
Model:
CJ-600/CJ-800/CJ-1000/CJ-1200/CJ-1400/CJ-1500/CJ-1600
Application:
Ceramic
Plating Process:
Vacuum Plating
Chamber Size:
1600*1800mm
Pump:
Diffusion Pump
Control System:
Manual/Full-Automatic
Ultimate Vacuum:
5*10-4Pa
Name:
Mini Magnetron Sputtering Vacuum Coating Machine/Chrome Coating
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
20 Set/Sets per Week PVD titanium sputtering coating machine
Packaging & Delivery
Packaging Details
Nude Packing
20"or40" container for PVD titanium sputtering coating machine
Port
Shanghai/Mini Magnetron Sputtering Vacuum Coating Machine/Chrome Coating
Lead Time :
Shipped in 25 days after payment
Product Description

CJ Series Magnetron Sputtering Vacuum Coating Machine

Disposable Tableware High Vacuum Metallizing Equipment/Plastic Fork and Knife PVD Plating/Plastic Plate Vacuum Coating Machinery



Operational principle:

The operating principle of magnetron sputtering of series CJ magnetron sputtering vacuum membrane plate machine: the so-called “sputtering” is using the energetic particle (the gas positive ion is used generally) to bombard the object so as to cause the phenomenon of the surface atom of the objective escaping from the parent. As far back as 1842, Grove had found this phenomenon in the laboratory. The magnetron sputtering target adopts the static electromagnetic field, which is curvilinear, while the plane target and cylindrical target adopt the uniform electric field and logarithm electric field respectively. Under effect of the electric field, the electron will collide with the argon atom in the process of accelerating flying to the substrate. When the electron has enough energy (about 30ev), Ar+ will be ionized and the electron will be produced and fly to the substrate; under effect of the electric field, Ar+ will accelerate flying to the cathode (the sputtering target) and bombard the surface of the target with high energy and make the target sputtering.


Applications:
It is widely used in electrical appliances, watch & clock, golf head, arts and crafts, toys, lights reflectors, phone keypad housing and instrumentation, plastics, glass, ceramics, tiles and other surface decorative coating film and functional coating of tool and mould. It has the irreplaceable advantages in areas of coated ultra-black film, gold decoration film and conductive film.

Features:
1) Good film thickness controllability and repeatability. The predetermined thickness of film can be reliably coated, and the sputtering coating film can be obtained with uniform thickness film layer on the large surface;

2) Strong adhesion of the film and the substrate. Some of the high energy of the sputtered atoms generates the different degrees of incidence phenomenon, forming a layer of pseudo-diffusion layer that sputtered atoms fused to the substrate atoms each other;

3) Prepare a film made by special material, different materials may be used to sputter and prepare a mixed film and compound film, and also a Tin imitation gold film can be sputtered;

4) High purity with film layer, the sputtering film layer will not be mixed with components of crucible heater material.

4) It is equipped with a low-temperature auxiliary ion beam source, directly cool coat the film at room temperature without heating, energy saving and productivity improvement.

Product Parameter
Model
CJ-600
CJ-800
CJ-1000
CJ-1200
CJ-1400
CJ-1500
CJ-1600
vacuum chamber dimensions
φ600X800MM
φ800X1000MM
φ1000X1200MM
φ1200X1400MM
φ1400X1600MM
φ1500X1500MM
φ1600X1800MM

vacuum system
KT400 Diffusion pump unit
KT500
Diffusion pump unit
KT800
Diffusion pump unit
KT630
Diffusion pump unit
A pair of
KT630
Diffusion pump unit
A pair of
KT630
Diffusion pump unit
A pair of
KT630
Diffusion pump unit
Coating system
Dc or intermediate frequency power supply, plating auxiliary ion dedicated power supply
Inflation system
Mass flowmeter
Control mode
Manual or automatic
Ultimate vacuum
5X10-4Pa
Remarks
Above equipment parameters for your reference only, specific according to customers' special requirement of practical process design
Equipment

Magnetron Sputtering Vacuum Coating Machine/PVD Coating Equipment/DLC  Coating Machinery

Electron Beam Evaporation Vacuum Coating  Machine/PVD Coating Machine

Automatic Resistance Evaporation Vacuum Coating Machine/PVD Coating Machinery

Coating Sample

Ceramic products vacuum coating

Ceramic products vacuum coating

Ceramic products vacuum coating

Stainless Steel Products Vacuum Coating

Stainless Steel Products Vacuum Coating

Stainless Steel Products Vacuum Coating

Plastic products vacuum coating

Plastic products vacuum coating

Plastic products vacuum coating

Glass products vacuum coating/pvd coating

Glass products vacuum coating/pvd coating

Glass products vacuum coating/pvd coating

Packing & Delivery
Factory

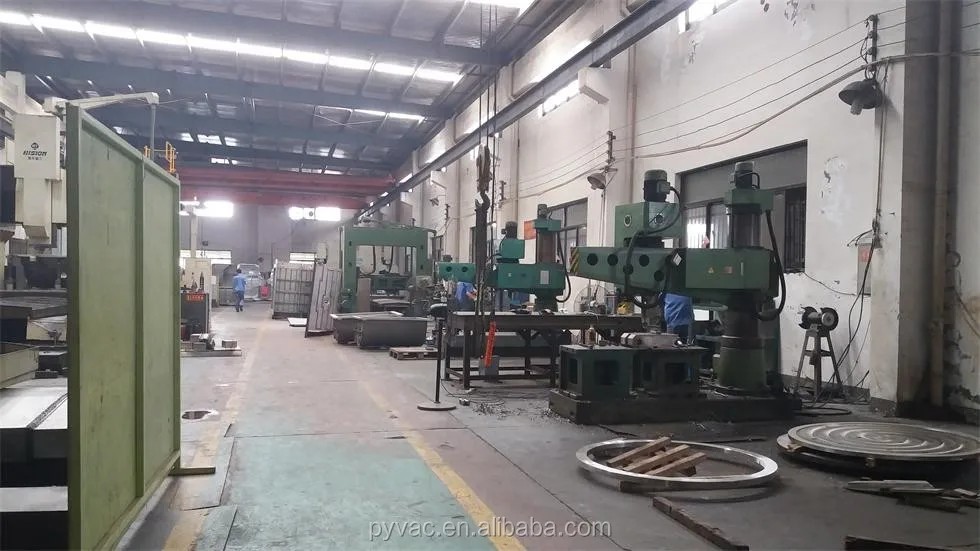

Chamber produce workshop

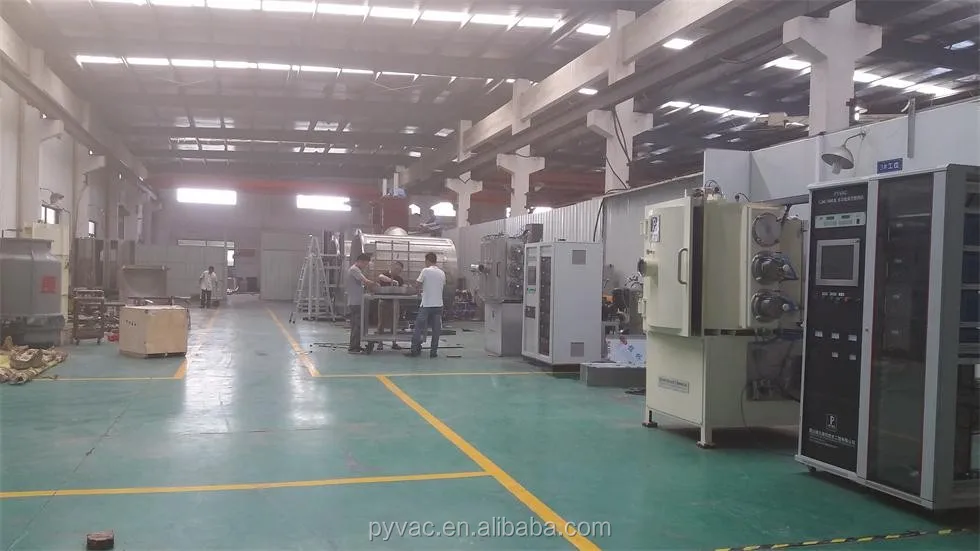

Installation workshop

FAQ

Q1 . How about the quality control about your products?

We have the ISO9001 QMS(quality management system) and CE certification. All machine will past the internal quality test and field testing.

Q2 . Does your company provide after-sale service?

 Yes. We have the field engineer to set-up and debug the machine. After the machine is fully running, we have one year of  quality warranty and full-life maintance service.

Q3 . Can you provide technical support about my work-flow?

Yes. The Puyuan Vacuum has more than 10 yesrs of expernence in the vacuum coating territory. We also have an independent R&D department, which will slove your production issue.

Q4 . Do you provide the second-hand mahine?

No. All machine in Puyuan Vacuum are new machine. We don't manufacture the second-hand machine.

Inquiry Information

When you send us a inquiry, in order to design the most suitable machine for your project, please inform me the following questions in your letter:

1. What is your product, its material and application
2. What is the possible max. size of your product
3. What is your desired productivity per 8 hours/shift.
4, What material do you to coating on your products ? Any color requirements ?
The answers to the above question will help us a lot on designing or do the recommendation.
Pls send the inquiry at the bottom of this page,thank you!
