Vacuum Brazing Furnace Professional Manufacture PYVAC

FOB Reference Price:Get Latest Price
$20,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
PYPVD
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Condition:
New
Type:
Coating Production Line
Substrate:
Aluminum
Coating:
Vacuum Coating
Place of Origin:
Jiangsu, China
Brand Name:
PYVAC
Voltage:
380V
Power(W):
40KW
Dimension(L*W*H):
Customized Size
Weight:
4 TONS
Certification:
ISO9001:2008
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Equipment:
Vacuum Brazing Machine
Model:
brazing
Application:
Insulation Cups
Plating Process:
Vacuum Brazing
Chamber Size:
1600*1800mm
Pump:
Diffusion Pump
Control System:
Manual/Automatic
Coating color:
According customers' requirement
Chamber size:
According production quantity
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude Packing
20"or40" container for vacuum coating machinery
Port
Shanghai
Product Description

Vacuum Brazing Furnace/Copper Brazing Machine/Insulation Cups Brazing Equipment


Operational principle:

Low temperature vacuum brazing furnace,the control system was controlled by PLC, temperature was controlled by intelligent temp controller, accurate control, high automation. User can choose auto or manual undisturbed switching to operate it, this furnace has abnormal condition alarming function, easy to operate.

Environmental protection performance has been improved, maintenance cost saving, energy cost saving.


Applications:

Insulation Cups Brazing

Product Parameter
Model
ZFG-1200
ZFG-1400
ZFG-1500
ZFG-1600
ZFG-1800
ZFG-2000
ZFG-2200
vacuum chamber dimensions
φ1200X1400MM
φ1400X1600MM
φ1500X1600MM
φ1600X1800MM
φ1800X2000MM
φ2000X2200MM
φ2200X2400MM

vacuum system
KT630 Diffusion pump unit
A pair of
KT630
Diffusion pump unit
A pair of
KT630
Diffusion pump unit
A pair of
KT630
Diffusion pump unit
A pair of
KT800
Diffusion pump unit
A pair of
KT1000
Diffusion pump unit
A pair of
KT1000
Diffusion pump unit
Coating system
Resistance evaporation source, silicone oil evaporation device
Inflation system
Germany import flow ratio control valve
Control mode
Manual or automatic
Ultimate vacuum
5X10-4Pa
Remarks
Above equipment parameters for your reference only, specific according to customers' special requirement of practical process design
Coating Products

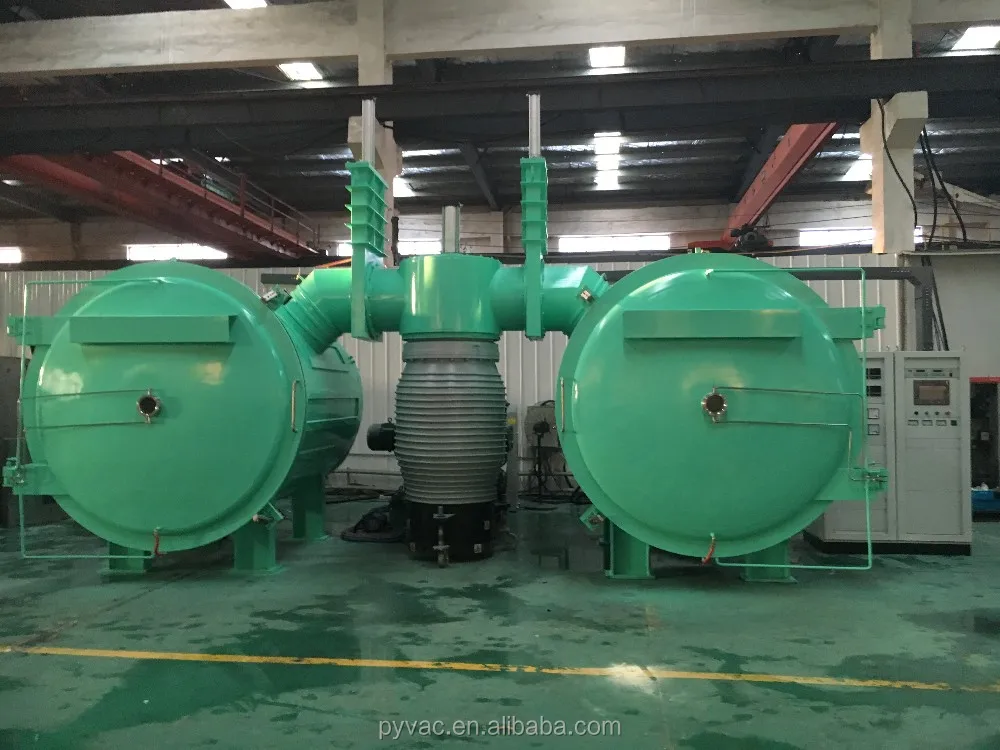

Double Chamber Vacuum Brazing Machine for Insulation Cups.



Putting full of insulation cups

Vacuum brazing insulation cups

Insulation cups arrangement

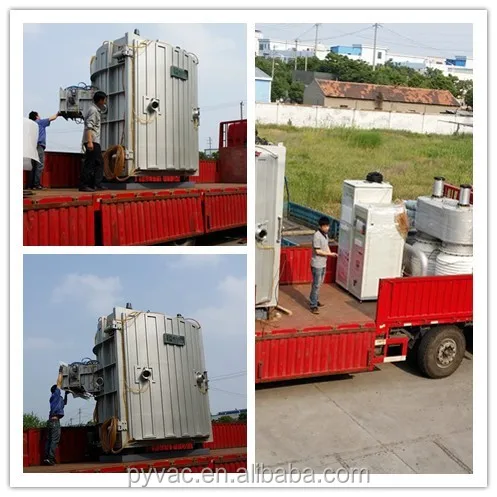

Packing and Delivery

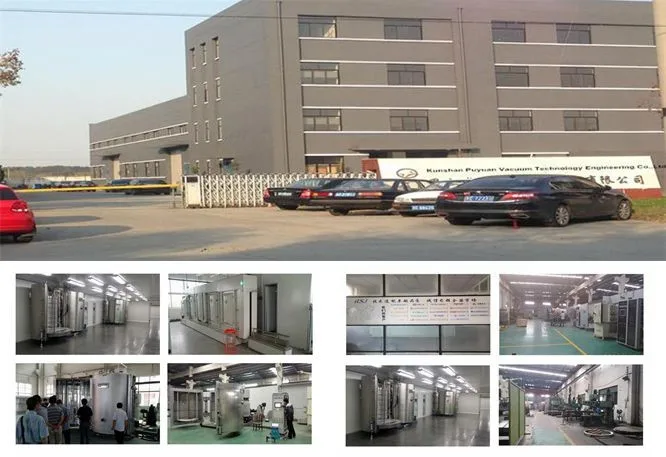

Factory
Customer Visit Us
RFQ

Q1 . How about the quality control about your products?

We have the ISO9001 QMS(quality management system). All machine will past the internal quality test and field testing.

Q2 . Does your company provide after-sale service?

Yes. We have the field engineer to set-up and debug the machine. After the machine is fully running, we have one year of quality warranty and full-life maintance service.

Q3 . Can you provide technical support about my work-flow?

Yes. The ZhenHua has more than 23 yesrs of expernence in the vacuum coating territory. We also have an independent R&D department, which will slove your production issue.

Q4 . Do you provide the second-hand mahine?

No. All machine in ZhenHua are new machine. We don't manufacture the second-hand machine.

Inquiry

Dear friends:

When you send us a inquiry, in order to design the most suitable machine for your project, please inform me the following questions in your letter:
1. What is your product, its material and application?

2. What is the possible max. size of your product?

3. What is your desired productivity per 8 hours/shift?

4, What material do you to coating on your products ? Any color requirements ?

The answers to the above question will help us a lot on designing or do the recommendation.
Pls send the inquiry at the bottom of this page.
