Gold Color Glass Railing Baluster Coating/Plating/Metallizing Machine

FOB Reference Price:Get Latest Price
$30,000.00 - $200,000.00 / Sets | 1 Set/Sets glass coating plating machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
PYVAC
Model Number:
HLG Series
Voltage:
220V/380V
Power(W):
380v 220v
Dimension(L*W*H):
1600*1800MM
Weight:
3-4 Tons
Certification:
CE SGS ISO9001
Equipment:
Tools special multi-arc ion vacuum coating machine
Model:
HLG-600/HLG-800/HLG-1000/HLG-1200/HLG-1400/HLG-1500/HLG-1600
Coating Products:
tools(drill/milling cutter/broach/tool bit/hard alloy etc)
Plating Process:
Vacuum Plating
Chamber Size:
1600*1800mm
Pump:
Diffusion Pump
Control System:
Manual/Automatic
Ultimate Vacuum:
5*10-4Pa
Vacuumizing Speed:
5*10-3Pa<15min
Name:
Gold Color Glass Railing Baluster Coating/Plating/Metallizing Machine
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
20 Set/Sets per Week glass coating plating machine
Packaging & Delivery
Packaging Details
Nude Packing
20"or40" container for pvd coating machine.
Port
Shanghai
Lead Time :
Shipped in 25 days after payment
Product Description

Gold Color Glass Railing Baluster Coating/Plating/Metallizing Machine

Operational principle:


The working principle of Multi-arc Ion Vacuum Coating Machine is that the vacuum arc discharge technology is used in evaporation source that the evaporation source (cathode) is ignited in vacuum environment, and the self-sustaining arc discharge is formed between the anodes that cathode material ions are released from the cathode arc bright points. Since the current partial concentration, the Joule heat generated in the cathode material locally explosively into plasma, compounding with the reaction gas under the action of biasing the work piece, and the coated layer is formed by depositing on the surface of the work piece.

Applications:

1. Tool industry (drill bits, hard alloy, milling cutters, broaches, tool bits)

2.Automobile industry (pistons, piston rings, alloy wheels, etc.)

Features:

1.It is equipped with a low-temperature auxiliary ion beam source, directly cool coat the film at room temperature without heating, energy saving and productivity improvement.

2. It has a high deposition rate, a fast speed in coating film and the wide covering areas. It can be coated with all kinds of decorative film or functional film on a variety of products, and is the best equipment in mass production of high-end products.


Product Parameter
Model
HLG-600
HLG-800
HLG-1000
HLG-1200
HLG-1400
HLG-1500
HLG-1600
vacuum chamber dimensions
φ600X800MM
φ800X1000MM
φ1000X1200MM
φ1200X1400MM
φ1400X1600MM
φ1500X1500MM
φ1600X1800MM

vacuum system
KT400 Diffusion pump unit
KT500
Diffusion pump unit
KT800
Diffusion pump unit
KT630
Diffusion pump unit
Double
KT630
Diffusion pump unit
Double KT630
Diffusion pump unit
Double
KT630
Diffusion pump unit
Coating system
Dc power supply or intermediate frequency power supply + many arc coating power, multi-functional twin target + rectangular planar target, the circular arc cylindrical magnetron arc more dual target (optional)
Coating auxiliary system
The low temperature ion secondary sources (except tool plating without heating system)
Inflation system
Mass flowmeter
Control mode
Manual or automatic
Pumping rate
5X10-3Pa<15min
Ultimate vacuum
5X10-4Pa
Remarks
Above equipment parameters for your reference only, specific according to customers' special requirement of practical process design

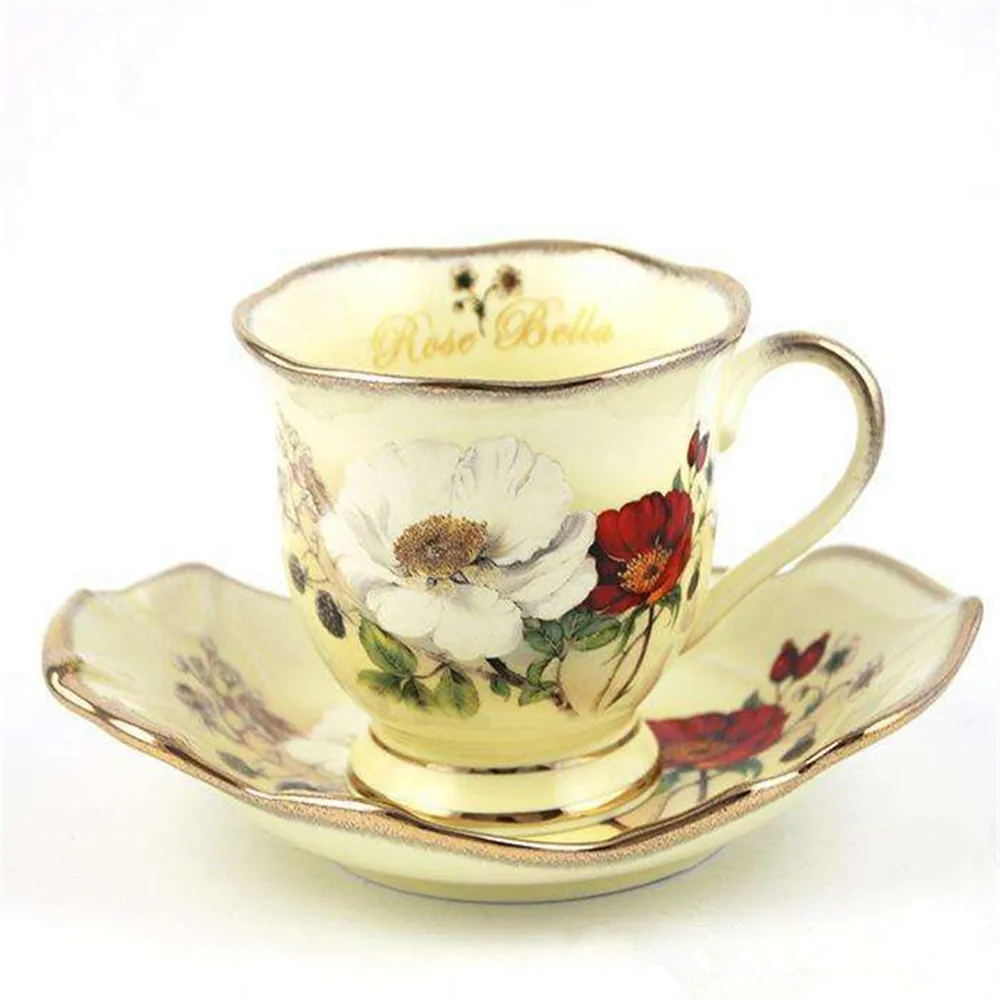

Coating Products
